Double Conversion Online UPS Distributor Mumbai Gxt Mtx Specifications and Conditions

The name GXT MTX is not enough to establish which UPS you are buying: the exact suffix, electrical rating, battery arrangement and installation conditions determine its performance. By the end, you will be able to match each model to your load, calculate realistic runtime, identify site requirements and demand a quotation that states what the Mumbai supplier is actually providing.

Key takeaways

Resolve the exact GXT MT+ suffix, voltage, revision and battery configuration.
Size the UPS for actual and future load, not the connected equipment count.
Confirm SB or LB batteries, runtime test conditions and recharge requirements.
Require installation, bypass, warranty and acceptance documents before delivery.

Which GXT MT+ CX electrical specifications must appear in the quotation?

Resolve “GXT MTX” before comparing prices. Ask the supplier to identify it against the exact Liebert GXT MT+ nameplate, including suffix, voltage, battery configuration and revision. The phrase double conversion online ups distributor in mumbai for gxt mtx specifications does not identify a purchasable model.

Variant	Identity and rated output	Electrical fields required	Physical fields required
1 kVA SB	Exact suffix, revision, 1 kVA and watts	230 V single-phase input/output; permissible input-voltage range; 50 Hz frequency range; input plug; output sockets; power factor; sine-wave output; output-voltage and frequency regulation; THD; online and ECO efficiency	Rack/tower dimensions, weight, rack height, depth, mounting hardware, front/rear clearance
1 kVA LB	Exact suffix, revision, 1 kVA and watts	Same complete electrical fields; state whether batteries are supplied	Same complete physical fields
2 kVA SB	Exact suffix, revision, 2 kVA and watts	Same complete electrical fields	Same complete physical fields
2 kVA LB	Exact suffix, revision, 2 kVA and watts	Same complete electrical fields	Same complete physical fields
3 kVA SB	Exact suffix, revision, 3 kVA and watts	Same complete electrical fields	Same complete physical fields
3 kVA LB	Exact suffix, revision, 3 kVA and watts	Same complete electrical fields	Same complete physical fields

Mark each cell as confirmed datasheet value or distributor verification pending. Published family data commonly confirms 230 V single-phase operation, 50 Hz operation and sine-wave output; verify every range and tolerance for the quoted revision.

A 3 kVA, 0.9-power-factor unit is not automatically 3 kW. Rack conversion also does not prove that rails or a bypass panel are included.

How does double conversion affect sizing, 16A installation and load selection?

A double-conversion online UPS continuously protects the load: the rectifier converts AC to DC, the DC bus feeds the inverter, and the inverter recreates the output waveform. The static bypass supplies the load when the inverter is unavailable or an overload meets its transfer criteria.

During a mains failure, the battery DC bus feeds the inverter, so interruption is effectively zero within the UPS design limits.

Size from measured connected watts, then add headroom for startup current, crest factor and future equipment. Do not operate a 2 kVA unit near 2 kW if its permitted watt rating and output power factor leave no margin.

Suitable loads include:

1 kVA, 2 kVA and 3 kVA units for switches, small servers, storage, telecom systems, security equipment and laboratory instruments after measuring demand.
Motors, compressors, pumps, laser printers, photocopiers, transformer-input devices and poor-power-factor loads require specific inrush and overload checks.

A 16A model needs its specified 16A circuit, connector, MCB, cable and protective earthing. Verify whether full output requires that input; an electrician should follow the installation manual, not copy a smaller model’s ratings.

A double conversion online UPS distributor in Mumbai or single phase UPS distributor in Mumbai should size input protection from UPS input and bypass current.

System	Protection	Efficiency, cost, runtime and maintenance
Online	Highest	Lower efficiency, higher cost, scalable runtime, battery maintenance
Line-interactive	Voltage correction	Better efficiency and cost, brief transfer, simpler maintenance
Modular online	Highest with redundancy	Higher cost, scalable capacity, flexible runtime, module maintenance
Standby	Basic outage protection	Lowest cost, highest efficiency, limited runtime and protection

What battery configuration and runtime should you expect from SB and LB models?

Do not accept a runtime stated as “up to” without the battery configuration behind it. Require one completed row for every exact GXT MT+ CX suffix.

Model family	Battery and charging information	Installation choice
SB 1, 2 and 3 kVA, each exact suffix	Quantity, total DC voltage, each battery’s Ah rating, battery part number, recharge time, design life, replacement interval and replacement part number	Short outages, compact deployment and simpler installation
LB 1, 2 and 3 kVA, each exact suffix	State whether batteries are supplied; identify compatible cabinets or packs, maximum charging current and recommended battery capacity	Longer autonomy with a separately sized bank, cabinet and ventilation plan

Require runtime curves or measured results at 25%, 50%, 75% and 100% load, expressed in watts. Each result must name the battery count, Ah capacity, total voltage and end-of-discharge voltage. Load power factor, battery age, temperature, recharge state and battery count change autonomy, so one minutes figure is not a specification.

The quotation must state whether the battery pack is included, its warranty, user-replacement method, disposal responsibility and the battery replacement part number. For LB systems, request external fuse or breaker ratings, cable sizes, polarity, series/parallel interconnection and cabinet protection instructions; do not let an installer improvise the DC link.

Ask an online UPS distributor in Mumbai or single phase UPS dealers in Mumbai to sign these figures. A long-run UPS without a defined battery bank is incomplete.

Which operating, installation, bypass and management conditions must the site meet?

Protect the UPS and load with site limits written into the order: ambient temperature 0–40°C, relative humidity 0–95% non-condensing, altitude up to the model’s rated limit, and audible noise at the manufacturer’s stated dB(A) value. Keep the room clean and dry; Mumbai heat, humidity, dust and restricted airflow accelerate battery ageing and thermal stress.

Record the installation manual’s exact front, rear, top and side clearances, plus ventilation requirements. Keep the battery room at 20–25°C where possible. Do not place the UPS in a sealed cabinet without forced airflow.

Use a dedicated circuit sized from both UPS input and bypass current. Confirm the MCB, cable, neutral and connector ratings, protective-earth continuity and measured earth impedance. A qualified electrician must follow the installation manual; never defeat the earth to cure noise or nuisance tripping.

Condition	Require in writing	Failure consequence
Generator	Frequency-drift, waveform-distortion, voltage-regulation and capacity limits	Bypass rejection or battery operation
Bypass	Automatic overload limits, voltage/frequency window, static or manual maintenance bypass	Unexpected transfer or dropped load
Fault response	Inverter-fault and battery-failure transfer behaviour	Unplanned shutdown

Specify display readings, audible-alarm meanings, USB or RS-232, network-card and SNMP support, shutdown software and event-log retention. Price preventive maintenance, thermal inspection, battery and load testing, calibration and spent-battery disposal as recurring costs.

What must a Mumbai distributor include before delivery and acceptance?

A quotation is not an acceptance plan until it identifies who is responsible for each deliverable. Ask a double conversion online UPS distributor in Mumbai, online UPS distributor in Mumbai, single phase UPS distributor in Mumbai or single phase UPS dealers in Mumbai for written evidence, not a dealer label.

1. Before ordering, require authorization, serial-numbered stock, exact model suffix and revision, delivery date, site survey, installation, commissioning, freight and battery availability. Name the warranty scope, battery warranty, service coverage, response time and escalation contact.

Separate the UPS, battery pack or cabinet, installation, cabling, bypass panel, rack hardware, network card, software, taxes and commissioning; reject “complete system” pricing.

2. On delivery, photograph the carton and nameplate, then match the serial number, model revision and battery condition to the quotation. Check the input connector, output sockets, accessories, display, alarms, USB or RS-232 operation, network-card provision, bypass operation and runtime at an agreed load.

3. Record input and output voltage, frequency, load watts, power factor, alarm status and battery-test results in the commissioning report. Originate Power Solutions can be evaluated on these same measures: local stock, documented GXT MT+ specifications, qualified installation, battery support and a service commitment.

Reject any quotation promising only “online UPS” without electrical and service details.

Related products

Single Phase UPS

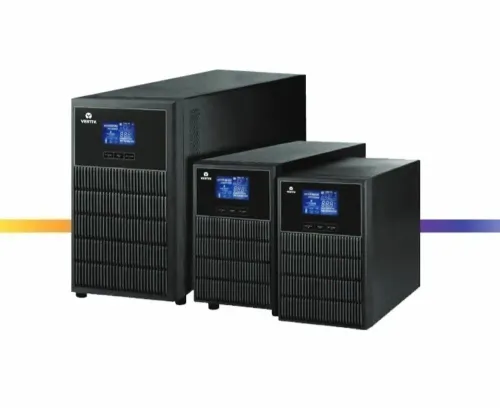

Vertiv Liebert GXT MT+ CX 2 kVA LB 16A (Long Run Model) Online UPS

₹45470

Vertiv Liebert GXT MT+ CX 2 kVA LB 16A is a true on-line UPS that delivers continuous, high-quality AC power to connected equipment with no...

View product →

Single Phase UPS

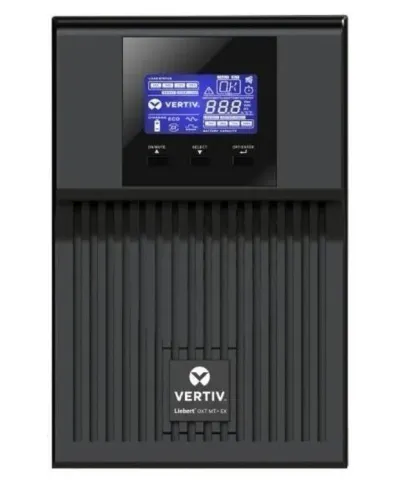

Vertiv Liebert GXT MT+ CX 2 kVA LB (Long Run Model) Online UPS

₹35600

Vertiv Liebert GXT MT+ Series system is true double conversion Online UPS systems designed to provide with a capacity of 2 kVA.

View product →

Frequently asked questions

Which GXT MT+ electrical specifications must appear in the quotation?
Request the exact model and suffix, rated kVA and kW, input and output voltage, phase arrangement, frequency, input plug or terminal details, output receptacles, efficiency, overload limits, bypass rating, battery configuration and revision-controlled datasheet.
How does double conversion affect UPS sizing and load selection?
A double conversion UPS continuously converts AC to DC and back to AC, so size it from the load’s real power in kW, apparent power in kVA, starting current, crest factor and planned growth. Check the manufacturer’s 16A installation limit and do not fill the UPS to its nameplate rating without allowance for nonlinear or future loads.
What battery configuration and runtime should you expect from SB and LB models?
Confirm whether the quoted model is the short-battery or long-battery version, the number and rating of battery blocks, internal or external placement, recharge time and the runtime test load. Runtime is not a fixed model value; it changes with load, battery age, temperature and end-of-discharge settings.
Which operating, installation, bypass and management conditions must the site meet?
Check ambient temperature, humidity, clearance, floor loading, ventilation, earthing, upstream protection, cable sizes, neutral arrangement, maintenance bypass requirements and generator compatibility. Also specify the communication card, monitoring protocol, alarms, shutdown software and access needed for servicing.
What must a Mumbai distributor include before delivery and acceptance?
Require a signed quotation, exact datasheet, battery schedule, single-line diagram, delivery scope, warranty terms, installation method statement, test procedure, commissioning report, serial numbers, manuals, training details and defined acceptance tests for transfer, bypass, alarms, load and runtime.
