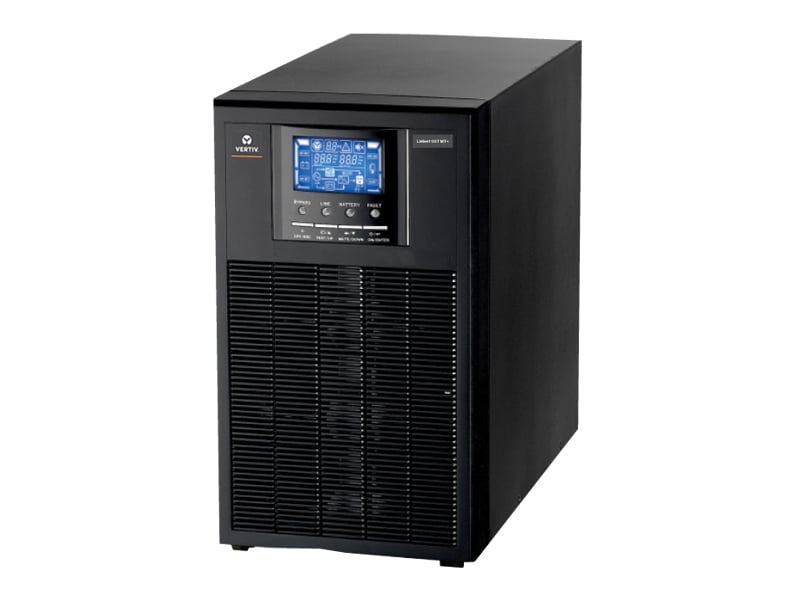

Name: Vertiv Liebert GXT MT+ 10 kVA (3x1) Online UPS
Brand: Vertiv
Price: 150750 INR
Availability: InStock

Chat with us

Single Phase UPS by Vertiv

Vertiv Liebert GXT MT+ 10 kVA (3x1) Online UPS

INR 150750

In stock•cod not available

Phone Number

08048041593

Please keep 0 before dialling the number.

Email Address originatepower@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address Flat. B-06 , 2nd Floor , Sanco Elegance, Moshi

Pune, India, 412105

Description

Liebert GXT MT+ Series system is true double conversion online UPS systems designed to provide with a capacity of 10 kVA. Liebert GXT MT+ units feature total isolation of the load from the mains - isolating input and output sections, and making the systems ideal for Data Networks / Small Data Centres/VOIP Applications application. The units support hot standby configuration, making them suited for critical applications like banks. Features & Benefits: • Rating: 10 kVA / 9 kW • Model: GXT MT+ 10KVA (3X1) • Phase: 3 Ph IN / 1 Ph OUT • I/P Voltage: 3 x 400 VAC (3Ph+N) • O/P Voltage: 208**/220/230/240VAC • IGBT Based Rectifier • True Online Double Conversion with DSP Control Technology for High Performance and Reliability. • New Graphical LCD Display Provides UPS Data, Alarms and Helps in faults diagnostics and trouble shooting. • Double Conversion Efficiency upto 90%. • Active I/P Power Factor Correction 0.99. • Output PF: 0.9 • Wide I/P Voltage window (110 - 280 Vac) for Indian Environmental Condition and for Optimized Battery Performance. • Generator Compatible with Wide Input Frequency Range (40 Hz-70 Hz). • 4 Stage Extendable Charging Design for optimized Battery Performance. • Adjustable Battery Charging Current up to 12A according to Battery Capacity and Rating. • Intelligent Monitoring with Standard RS232/USB Port Plus Slot Available for RS485/Dry Contact/SNMP Card.

Specifications

Higher Output Power Factor	0.9
Technical Specifications
Model	GXT MT+ 10KVA (3X1)
Phase	3 Phase IN / 1 Phase OUT
Capacity (kVA)	10 kVA
Capacity (kW)	9 kW
Input Characteristics
Nominal Voltage	3 x 400 VAC (3Ph+N)
Voltage Range	305-478 VAC (3-phase) @ 100% load
Frequency Range	46~54 Hz or 56~64Hz
Power Factor	≥ 0.99 @ 100% load
THDi	< 6% @ 100% load
Output Characteristics
Output Voltage	208**/220/230/240VAC
Voltage Regulation	± 1%
Frequency Range (Synchronized Range)	46~54Hz or 56~64Hz
Frequency Range (Batt. Mode)	50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio	3:1 (max.)
Harmonic Distortion	≤ 2 % THD (Linear Load) ; ≤ 5 % THD (Non-linear Load)
Transfer Time	Zero
Waveform	Pure Sinewave
Ac Mode Effiiciency	>92%
Eco Mode Efficiency	97%
Battery Characteristics
Battery Type	Lead acid/Tubular/Li-ion
Numbers	18-20***(adjustable)
Charging Current (Max.)	12A settable to 2/4/6/8/10/12 Amps
Charging Voltage	273 VDC ± 1% (Based on 20pcs bateries)
Indicators
LCD Panel	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Alarm
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Countinuously sounding
Physical
Dimension, D X W X H (mm)	592 X 250 X 576
Net Weight (Kgs)	28
Environment
Operation Humidity & temperature	0-95 % RH @ 0- 50°C**** (non-condensing)
Noise Level	< 58dB @ 1 Meter
Management
Smart Rs-232/Usb	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP	Power management from SNMP manager and web browser
T&C
Warranty	1 Year on UPS
Vertiv T&C	* Product specifications are subject to change without further notice Derate capacity to 90% of capacity when the output voltage is adjusted to 208VAC When using batteries from 18-19, the unit will be de-rate according to formula ; P= Prating X N/20 *** Derate to 80% capacity when ambient temperature is 45º-50º
