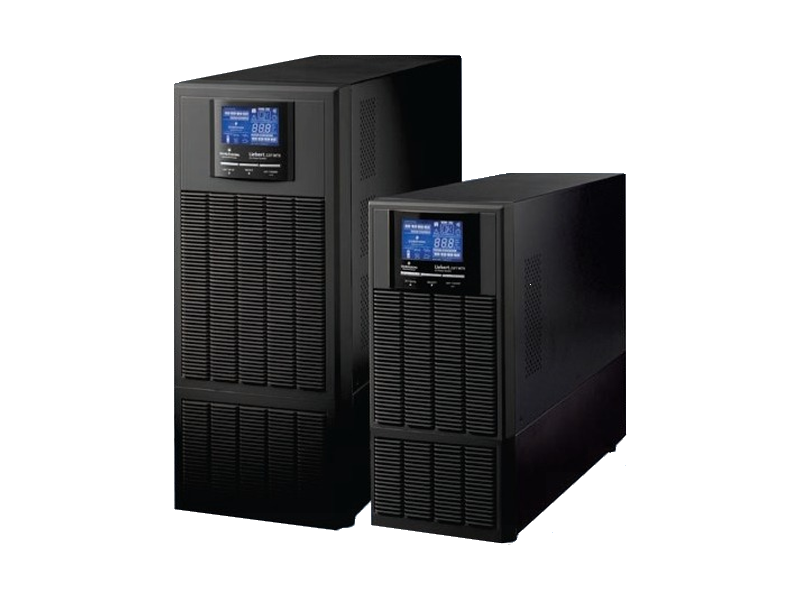

Liebert GXT MTX+ 6 kVA is a full featured Transformer based UPS designed to offer compact efficient and reliable power thirsty modern electronic gadgets.
The Liebert GXT MTX+ 6 kVA is compact UPS System with best-in-class Online UPS technology suited for critical applications such as IT & Communication Equipments, VolP, Small/Medium Data Centre, Server Rooms, ATMs etc.
Features & Benefits:
• Rating: 6 kVA / 4.80 kW
• Model: GXT MTX+ 6 kVA
• Phase: 1 Phase IN / 1 Phase OUT
• I/P Voltage: 230 Vac (1 Ph+ N)
• O/P Voltage: 208**/220/230/240 VAC
• Inbuilt Isolation Transformer
• IGBT Based Rectifier.
• True Online Double Conversion with DSP Control Technology for High Performance and Reliability.
• New Graphical LCD Display Provides UPS Data, Alarms and Helps in faults diagnostics and troubleshooting.
• Double Conversion Efficiency upto 84%.
• Active Input Power Factor Correction 0.99.
• Output Power Factor: 0.8
• Wide Input Voltage window (110 — 300 Vac) for Indian Environmental Condition and for Optimized Battery Performance.
• Adjustable Battery Configuration from 16*/18*/20 pcs and Digital battery Charger with Adjustable Charging Current (0.5 Amps to 6 Amps) Via LCD Display.
• 3 Stage Extendable Charging Design for the Optimized Battery Performance.
• CE and ROHS Compliance.
Specifications
Isolation Transformer
Inbuilt
Technical Specifications
Model
GXT MTX+ 6 kVA
Capacity (kVA)
6 kVA
Capacity (kW)
4.80 kW
Phase
1 Phase IN - 1 Phase OUT
Input
Voltage Range
Low Line Loss
110 VAC ± 3% at 50% Load / 160 VAC ± 3% at 100% Load
Low Line Comeback
Low Line Loss Voltage +10V
High Line Loss
300 VAC ± 3%
High Line Comeback
High Line Loss Voltage - 10V
Frequency Range
46Hz ~ 54Hz @ 50Hz system / 56Hz ~ 64Hz @ 60Hz system
Phase
Single phase with ground
Power Factor
≥ 0.99 @ 100% load
Output
Output Voltage
220/230/240VAC
Ac Voltage Regulation
± 1%
Frequency Range (Synchronized Range)
46 Hz ~ 54 Hz @ 50Hz system or 56 Hz ~ 64 Hz @ 60Hz system
16-20 Derating capacity = original real power capacity X N/20
Charging Current
Default: 4 A ± 10% / Max.: 6A ± 10% (settable)
Charging Voltage
13.65 V ±1%
Physical
Dimension, D x W x H (mm)
369x190x630
Net Weight (kgs)
72
Environment
Operation Temperature
0 ~ 40 C (battery life cycle will be shorten when temperature is above 25 C)
Operation Humidity
<95 % and non-condensing
Operation Altitiude
<1000m
Acoustic Noise Level
Less than 65dBA @ 1 Meter
Management
Smart Rs-232/Usb
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
Optional Snmp
Power management from SNMP manager and web browser
T&C
Warranty
1 Year on UPS
Vertiv T&C
* Product specifications are subject to change without further notice **Derate capacity to 90% of capacity when the output voltage is adjusted to 208VAC ** *When using batteries from 16-19, the unit will be de-rate according to formula ; P= Prating X N/20
