Single Phase UPS by Vertiv

Vertiv Liebert GXT MT+ EX 3 kVA LB (Long Run Model) Online UPS

INR 41250

In stock•cod not available

Phone Number

08048041593

Please keep 0 before dialling the number.

Email Address originatepower@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address Flat. B-06 , 2nd Floor , Sanco Elegance, Moshi

Pune, India, 412105

Description

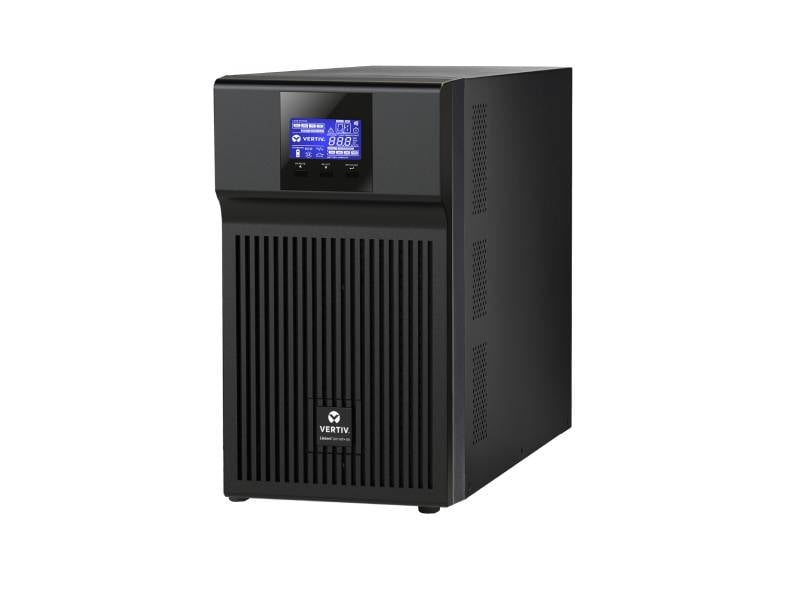

The Vertiv Liebert GXT MT+ EX UPS in an Online Double Conversion Uninterruptible Power Supply (UPS) solution designed to provide a capacity of 1-3 kVA, with extended runtime capabilities and is an affordable UPS for high-performance power protection. The on-line double conversion UPS delivers continuous, high-quality AC power to connected equipment with no interruption when transferring to battery. It provides protection from blackouts, brownouts, sags, surges, or noise interference. The Liebert® GXT MT+ EX UPS is a true on-line power source, which means power is always being conditioned and supplied to the connected device(s), whatever the quality of power coming in, a pure sine wave output results to ensure equipment is protected. Features • Rating: 3 kVA / 2.70 kW • Model: GXT MT+ EX 3 kVA • Phase: 1 Phase IN - 1 Phase OUT • I/P Voltage: 230 VAC • O/P Voltage: 208/220/230/240 VAC • IGBT Based Rectifier • Output Power Factor: 0.9 • Digital Signal Processors (DSP) Control Technology for High Performance and Reliability. • Equipped with intuitive and broad LCD Display. • Double Conversion Efficiency up to 92% • Active Input Power Factor (PF) Correction 0.99. • Wide Input Voltage window (110 Vac to 280 Vac) for Indian Environmental Condition. • Generator Compatible with Wide Input Frequency Range (40 Hz to 70 Hz) • 4 Stage, Extendable Charging Design for optimized Battery Performance. • Adjustable Battery Charging Current 1 A/2 A/4 A/6 A according to Battery Capacity and Rating. • 50 Hz/60 Hz Automatic Frequency Converter Mode. • Inbuilt Over Voltage Cut-Off device (OVCD) feature • Battery: External as per Backup Requirement • DC Bus / Battery Number: 6 Nos.

Specifications

Higher Output Power Factor	The Vertiv™ Liebert® GXT MT+ EX UPS delivers 0.9 output power factor, therefore, the active power is 12% higher than that of a UPS with 0.8 PF.
Technical Specifications
Model	Vertiv Liebert GXT MT+ EX 3 kVA LB
Capacity (kVA)	3 kVA / 3000W
Capacity (kW)	2.70 kW / 2700W
Input Parameters
Nominal Voltage	230 Vac
Low Line Transfer (Voltage Range)	180 Vac/160 Vac/140 Vac/120 Vac ± 5% (Ambient Temperature < 35 °C) (Based on load percentage 100% to 80%; 80% to 70%; 70% to 60%; 60% to 0%)
Low Line Comeback (Voltage Range)	195 Vac/175 Vac/155 Vac/145 Vac ± 5 % (Ambient Temperature < 35 °C) (Based on load percentage 100% to 80%; 80% to 70%; 70% to 60%; 60% to 0%)
High Line Transfer (Voltage Range)	300 Vac ± 5%
High Line Comeback (Voltage Range)	290 Vac ± 5%
Frequency Range	40 Hz to 70 Hz
Power Factor	≥ 0.99 @ 100% load
Output Parameters
Nominal Voltage	208* Vac/220 Vac/230 Vac/240 Vac
AC Voltage Regulation	± 1%
Frequency Range (Synchronized Range)	(47 Hz to 53 Hz) or (57 Hz to 63 Hz)
Frequency Range (Battery Mode)	(50 Hz ± 0.25 Hz) or (60 Hz ± 0.3 Hz)
Current Crest Ratio	3 : 1 (maximum)
Harmonic Distortion	≤ 3 % THD (Linear Load), ≤ 6 % THD (Non-linear Load)
Transfer Time - Bypass to Inverter (Line mode)	Zero
Transfer Time - Inverter to Bypass (Line mode)	4 millisecond (ms) (Typical)
Waveform (Battery Mode)	Pure Sine Wave
Efficiency on AC to AC mode @ 100% load	90%
Battery
Battery Type	Depending on the capacity of external batteries
Numbers / DC Bus	6
Charging Current	1.0 A/2.0 A/4.0 A/6.0 A (6.0 A by default)
Float Charging Voltage	82.1 Vdc ± 1%
Indicators
LCD Panel	UPS status, load level, battery level, input/output voltage, discharge timer, and fault conditions
Alarm
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Continuously sounding
Physical
Dimension, D x W x H (mm)	397 x 145 x 220
Net Weight (kg)	7.40
Environment
Operation Humidity and Temperature	20% to 90% RH @ 0 °C to 50 °C** (non-condensing)
Noise Level	Less than 50 dBA @ 1 meter (m)
Management
Smart RS232/USB	Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
Optional SNMP	Power management from SNMP manager and web browser
T&C
Warranty	2 Years on UPS
Vertiv T&C	() Note: Derate to 70% of capacity in Frequency converter mode or when the output voltage is adjusted to 208 Vac. / (*) Note: UPS derates to 70% capacity at 50 °C / Note: The specifications are subject to change without any prior notice.
