| Technical Specifications |
|

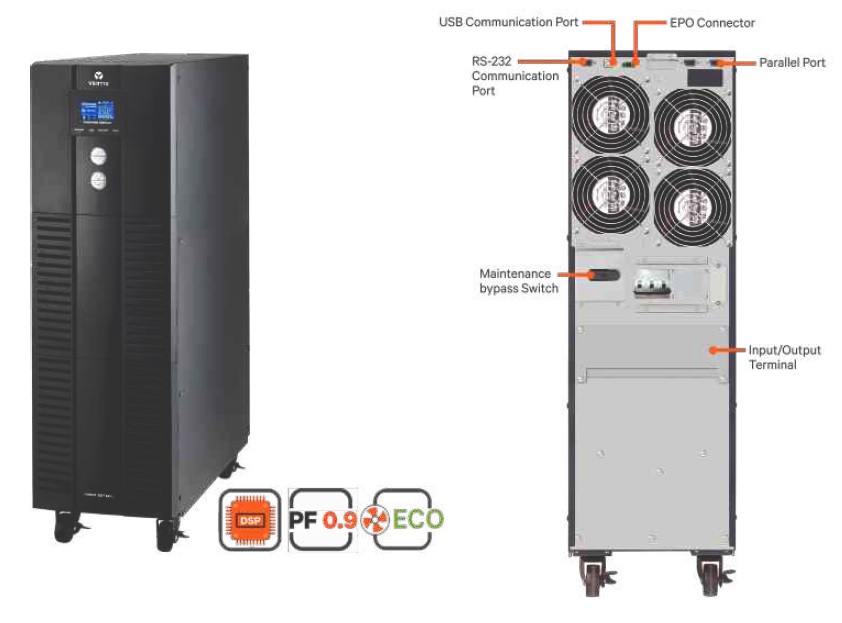

| MODEL |
GXTMT+ 10 kVA LX (3 X 3) |
| Rating |
10 kVA/9 kW ( 3 in - 3 out) |
| System Parameter |
|
| Technology |
IGBT based double conversion PWM based online UPS |
| Parallel Mode |
3 UPS |
| Installation Mode |
Tower |
| Input |
|
| Rated Voltage |
400 VAC 3-phase, 4-wire |
| Voltage Range |
Three phase 305 VAC - 520 VAC |
| Rated Frequency |
50 Hz/60 Hz |
| Input THDi |
<5%(1) |
| Frequency Range |
46 Hz to 54 Hz, 56 Hz to 64 Hz |
| Power Factor |
0.99 |
| Output |
|
| Rated Power |
10 kVA/9 kW |
| Voltage |
Three Phase 400 VAC, 50 Hz |
| Frequency Synchronization Range |
Rated frequency±4 Hz. Configurable range: ±0.5 Hz ~ ±5 Hz |
| Rated Power Factor |
0.9 |
| Crest Factor |
3:1 |
| Output THDv |
< 2% linear load and 5% for non linear load |
| Voltage Regulation |
1% |
| Dynamic response Recovery Time |
60 ms |
| Inverter Overload Capability on Utility Mode |
100% to 110% - 10 min, 110 - 130% -1 min, >130% - 1 sec |
| Inverter Overload Capability on Battery Mode |
100% to 110% - 30 sec, 110 - 130%-10 sec, >130% - 1 sec |
| Bypass |
|
| Separate Bypass |
Yes |
| Maintenance Bypass |
Inbuilt |
| Static Bypass |
Inbuilt |
| Efficiency |
|
| ECO Mode |
96% |
| Online Mode (AC-AC) |
>91% |
| Inverter Efficiency (DC-AC) |
>86% |
| Battery |
|
| Type |
Sealed, lead-acid, Tubular, Li-ion |
| No's of Batteries |
18(2) - 20 |
| Battery Charging Capacity |
12 A |
| Transfer Time |
|
| Mains - Battery |
4 ms |
| Inverter - Bypass |
Synchronous transfer: ≤0 ms, Asynchronous transfer (default): ≤20 ms |
| Noise |
<60 db |
| Panel Display Mode |
LCD display |
| Environmental Parameter |
|
| Operating Temperature |
0 °C to 40 °C |
| Storage Temperature |
15 to 65 °C (excluding battery), -0 to 35 °C (including battery) |
| Relative Humidity |
5% RH ~ 95% RH, non-condensing |
| Altitude |
1000 m |
| Mechanical Parameter |
|
| W X D X H (mm) |
250 X 592 X 826 |
| Weight (Kg) |
38 |
| Ventilation |
Forced -air cooled |
| Ingress Protection Level |
IP20 |
| Color |
Powder coated Black Texture finish |
| Cable Entry |
Rear |
| Network Management |
|
| Smart RS-232/USB |
Supports Windows 2000/2003/2008/Vista/XP, Windows 7, Linux, Unix, and MAC |
| SNMP |
Power management from SNMP manager and web browser |
| Management Software |
View power |
| Modbus |
Optional |
| Certifications |
|
| Safety (CE) |
IEC/EN62040-1-1 |
| Electromagnetic Compatibility (EMC) |
IEC/EN62040-2, IEC/EN61000-3-11, IEC/EN61000-3-12, YD/T1095-2008 |
| Surge Protection |
IEC/EN62040-2, meeting IEC/EN61000-4-5 level 4 |
| ROHS |
2011/65/EU |
| T&C |
|
| Warranty |
1 Year on UPS |
| Vertiv T&C |
Product Specifications are subject to change without any prior notification. Note : (1) THDi on Y phase is 12% due to charger (2) When using battery from 18 to 20 nos, the unit will de-rate according to formula P= Rating x N/20 |
