| applyTechnical Specifications |
|
| Model |

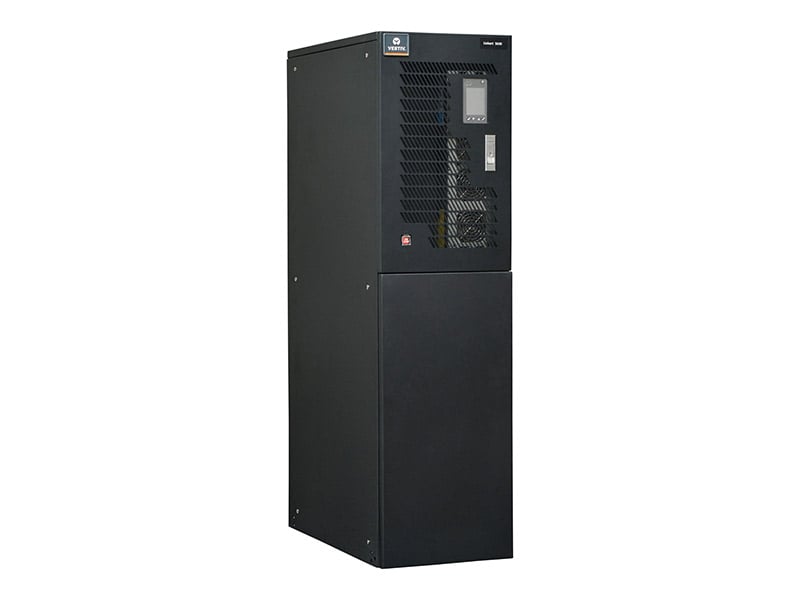

S600D |
| Rating |
20 kVA |
| Phase |
3 Phase IN - 1 Phase OUT |
| Rated Voltage |
380/400/415 Vac 3-phase,4 wire |
| Volatge Range |
176-288Vac (Phase to Neutral) at 100% load; 100Vac -288Vac (Phase to Neutral) at 50% load |
| Rated Frequency |
50Hz / 60Hz |
| Frequency Range |
40Hz ~ 70Hz |
| Power Factor |
≥0.95 at full load |
| Input phase reversal correction |
Inbuilt |
| Output |
|
| Rated Power |
20kVA / 20kW |
| Voltage |
220/230/240Vac (single phase) |
| Frequency synchronization range |
Rated frequency±3Hz. Configurable range: ±0.5Hz ~ ±5Hz |
| Rated Power Factor |
Unity |
| Crest Factor |
3:1 |
| Voltage harmonic distortion |
< 2% (linear load) |
| Voltage Regulation |
2 % |
| Dynamic response recovery time |
60 ms |
| Isolation Transformer |
Inbuilt at UPS output |
| Inverter Overload Capability the utility mode |
At 25°C: 105% ~ 125%- 5min; 125% ~ 150%-1min; 150%- more than 200ms |
| Inverter Overload Capability the battery mode |
At 25°C :105% ~125%-60~ 30 s; >125%- more than 200ms |
| Bypass |
|
| Maintenance Bypass |
Inbuilt |
| Seprate Bypass |
Yes |
| Static Bypass |
Inbuilt |
| Efficiency |
|
| ECO Mode |
> 94% |
| Online mode (AC-AC) |
> 91% |
| Inverter Efficiency (DC-AC) |
88% |
| Battery |
|
| Type |
Sealed Maintenance Free Valve Regulated Lead Acid/ Lithium-ion Batteries |
| No’s of Batteries |
24(1), 32, 34, 36, 38, 40; 32 by default |
| Battery Fuse disconnector |
Inbuilt |
| Battery charging capacity |
13A |
| Transfer Time |
|
| Transfer Time - Mains - Battery |
0 ms |
| Transfer Time - Inverter- Bypass |
Asynchronous transfer (default): ≤20ms / Synchronous transfer: ≤0ms |
| UPS Parallel Numbers |
4 |
| Noise |
<65db |
| Panel Display Mode |
Graphical LCD Display |
| Ambient Conditions |
|
| Operating Temperature |
0°C ~ 50°C(2) |
| Storage Temperature |
40°C ~ +70°C (battery excluded); -25°C ~ +55°C (battery included) |
| Relative Humidity |
5%RH ~ 95%RH, non-condensing |
| Altitude |
≤3000m; derating when higher than 3000m |
| Machanical parameter |
|
| W*D*H (mm) |
335 X 650 X 1300 |
| Weight (Kg) |
175 |
| Ventilation |
Forced Air Cooled |
| Ingress Protection |
IP20 |
| Color |
Powder coated Black Texture finish |
| Cable entry |
Bottom |
| Network Management |
|
| Smart RS232/USB |
Supports Windows 2000/2003/XP/Vista/2008,Windows 7,Linux,unix and MAC |
| Web-page Monitoring ( SNMP) |
Inbuilt for Web-based monitoring |
| Advanced SNMP(Remote Alarm management) |
Optional “RDU SIC G2” card needs to be considered for remote power management, alarm management, email alerts,etc. |
| Management Software |
Site Monitor |
| Modbus |
Inbuilt Via Multifunction port |
| T&C |
|
| Warranty |
1 Year on UPS |
| Vertiv T&C |
(1) UPS power will derate to 70% of the total capacity / (2) UPS power will derate to 80% at 40deg, 70% at 50deg *conditions applyTechnical |
