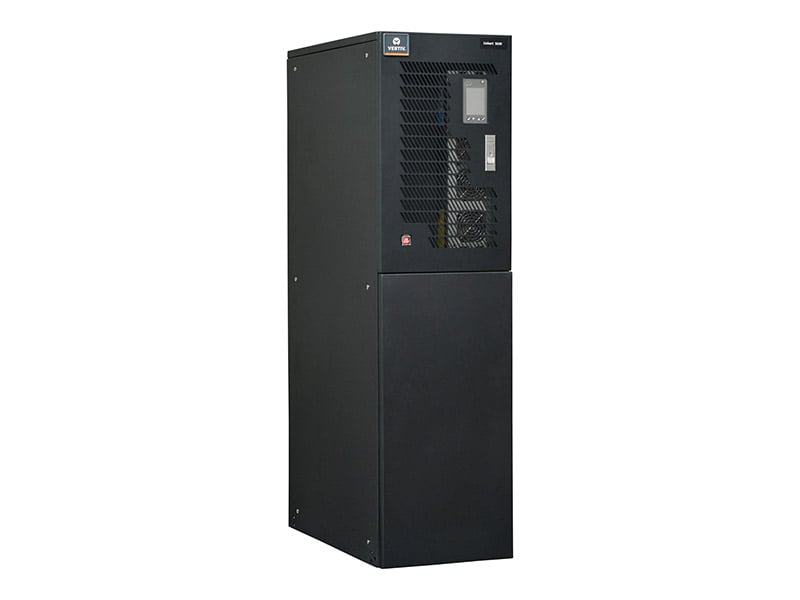

Name: Vertiv Liebert S600D 20 kVA (3x1) Online UPS with Inbuilt Isolation Transformer
Brand: Vertiv
Price: 362700 INR
Availability: InStock

Chat with us

Single Phase UPS by Vertiv

Vertiv Liebert S600D 20 kVA (3x1) Online UPS with Inbuilt Isolation Transformer

INR 362700

In stock•cod not available

Phone Number

08048041593

Please keep 0 before dialling the number.

Email Address originatepower@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address Flat. B-06 , 2nd Floor , Sanco Elegance, Moshi

Pune, India, 412105

Description

The Liebert S600 is a fully-digital, highly reliable, double conversion UPS solution that delivers clean and consistent power. This highly efficient solution is ideal for various deployments, whether it is IT racks, network closets, automation control systems, and precision instruments to small-sized control rooms among other edge applications. Liebert S600 offers best-in-class efficiency of up to 91% over a wide range of load conditions, resulting in significant OPEX cost savings. S600D's integrated Smart Sleep technology in ECO mode provides a superlative efficiency of up to 94%. Features • Rating: 20 kVA/kW • Model: S600D • Phase: 3 Phase IN / 1 Phase OUT • I/P Voltage: 415Vac • O/P Voltage: 220/230/240VAC (Single Phase) • Output Power Factor: Unity (1) i.e. kVA=kW • Efficiency >91% with Inbuilt Transformer • Inbuilt Isolation Transformer: Protects UPS and load from high voltage fluctuations. • Early Warning of UPS System Status • Power-Factor Correction: Prevents noise, harmonics, and distortion from being passed on to connected loads or from being fed back to the utility. • Lightning and Surge Protection • Wide Input Voltage Window • Manages all the nine power problems including sagging, spikes, and fluctuations. • Built-in-power charger for fast charging reduces battery charging time. • LI-ion battery compatible • Integrated SNMP for monitoring and Modbus function • Settable battery options • Graphical screen system LCD display provides user-friendly operating interface

Specifications

Isolation Transformer	Inbuilt
Technical Specifications
Model	S600D
Rating	20 kVA
Phase	3 Phase IN - 1 Phase OUT
Rated Voltage	380/400/415 Vac 3-phase,4 wire
Volatge Range	176-288Vac (Phase to Neutral) at 100% load; 100Vac -288Vac (Phase to Neutral) at 50% load
Rated Frequency	50Hz / 60Hz
Frequency Range	40Hz ~ 70Hz
Power Factor	≥0.95 at full load
Input phase reversal correction	Not Applicable
Output
Rated Power	20kVA / 20kW
Voltage	220/230/240Vac (single phase)
Frequency synchronization range	Rated frequency±3Hz. Configurable range: ±0.5Hz ~ ±5Hz
Rated Power Factor	Unity
Crest Factor	3:1
Voltage harmonic distortion	< 2% (linear load)
Voltage Regulation	2 %
Dynamic response recovery time	60 ms
Isolation Transformer	Inbuilt at UPS output
Inverter Overload Capability the utility mode	At 25°C: 105% ~ 125%- 5min; 125% ~ 150%-1min; 150%- more than 200ms
Inverter Overload Capability the battery mode	At 25°C :105% ~125%-60~ 30 s; >125%- more than 200ms
Bypass
Maintenance Bypass	Inbuilt
Seprate Bypass	Yes
Static Bypass	Static Bypass
Efficiency
ECO Mode	> 94%
Online mode (AC-AC)	> 91%
Inverter Efficiency (DC-AC)	88%
Battery
Type	Sealed Maintenance Free Valve Regulated Lead Acid/ Lithium-ion Batteries
No’s of Batteries	24(1), 32, 34, 36, 38, 40; 32 by default
Battery Fuse disconnector	Inbuilt
Battery charging capacity	13A
Transfer Time
Transfer Time - Mains - Battery	0 ms
Transfer Time - Inverter- Bypass	Asynchronous transfer (default): ≤20ms / Synchronous transfer: ≤0ms
UPS Parallel Numbers	4
Noise	<65db
Panel Display Mode	Graphical LCD Display
Ambient Conditions
Operating Temperature	0°C ~ 50°C(2)
Storage Temperature	40°C ~ +70°C (battery excluded); -25°C ~ +55°C (battery included)
Relative Humidity	5%RH ~ 95%RH, non-condensing
Altitude	≤3000m; derating when higher than 3000m
Machanical parameter
*WDH (mm)*	335 X 650 X 1300
Weight (Kg)	150
Ventilation	Forced Air Cooled
Ingress Protection	IP20
Color	Powder coated Black Texture finish
Cable Entry	Bottom
Network Management
Smart RS232/USB	Supports Windows 2000/2003/XP/Vista/2008,Windows 7,Linux,unix and MAC
Web-page Monitoring ( SNMP)	Inbuilt for Web-based monitoring
Advanced SNMP(Remote Alarm management)	Optional “RDU SIC G2” card needs to be considered for remote power management, alarm management, email alerts,etc.
Management Software	Site Monitor
Modbus	Inbuilt Via Multifunction port
T&C
Warranty	1 Year on UPS
Vertiv T&C	(1) UPS power will derate to 70% of the total capacity / (2) UPS power will derate to 80% at 40deg, 70% at 50deg *conditions applyTechnical
