A 6 kVA, 10 kVA or 20 kVA UPS is the right choice only when its usable kW capacity, electrical configuration, runtime and installation requirements match your actual load. By the end, you will be able to calculate the required size, distinguish 1x1, 3x1 and 3x3 arrangements, specify battery autonomy and compare dealer proposals on more than price.
Key takeaways
- Size the UPS from measured load, growth and starting demand—not the room name.
- Convert kVA to usable kW using the UPS power-factor rating.
- Confirm whether the supply is 1x1, 3x1 or 3x3 before installation.
- Demand runtime calculations, service terms and commissioning documents in writing.
Match 6 kVA, 10 kVA and 20 kVA to the real application
A useful rule for single phase ups dealers in pune ita2 series size applications is to match the UPS to measured equipment demand, not the room name. Use this as a starting point:
| Size | Best-fit applications | Watchpoint |
|---|---|---|
| 6 kVA | One server rack, network room, laboratory bench, security system, or workstation cluster | Check storage, monitors, PoE switches and future devices; a fully populated rack can outgrow it |
| 10 kVA | Larger server rack, laboratory, branch office IT room, or multiple workstation clusters | Plan fixed wiring, upstream protection, bypass access, ventilation and service clearance |
| 20 kVA | Small data room, several server racks, or a branch site with consolidated servers, storage and network equipment | Confirm the building supply, cable routes and distribution board before treating it as a single-phase installation |
A single camera system or telecom cabinet may need less than 6 kVA; do not buy a larger UPS merely because the room is critical. Conversely, a 20 kVA unit is excessive for a lightly loaded network closet.
Near a boundary, total the measured running watts, peak startup demand and planned additions, then compare that figure with the manufacturer’s usable kW rating. Choose the next size when the smaller model leaves little headroom or cannot support the required battery recharge and bypass arrangement.
Ask single phase ups dealers in pune to document the load calculation and exact ITA2 input-output configuration; a paper recommendation can create nuisance trips, overload alarms or an installation that cannot be commissioned safely.
Calculate usable UPS capacity in kW, not only kVA
Size the UPS from the highest measured load, not the sum of equipment nameplate VA. Calculate the requirement as:
Required kW = (maximum running watts + startup or inrush demand + battery-recharge watts) × growth margin
Measure the load with a power analyser during its busiest operating period, then document:
- Maximum simultaneous running watts
- Motor, compressor or transformer inrush, including duration
- Charger demand while the batteries recover after an outage
- Planned equipment additions and their expected watts
Confirm that the UPS overload rating can handle the startup event; adding watts alone does not prove it will.
Apply a 20–30% spare-capacity margin after accounting for operating demand. Choose a larger margin for a variable load or a site expanding within the UPS’s service life. Do not use spare kVA as a substitute for battery runtime; extra runtime requires a compatible external battery arrangement.
Convert the nominal rating with the power factor printed on the manufacturer datasheet: usable kW = rated kVA × output power factor. At 0.9 power factor, a 3 kVA UPS supplies about 2.7 kW, while a 10 kVA UPS supplies about 9 kW. A 10 kVA label therefore does not guarantee 10 kW.
Ask a single phase UPS manufacturer and supplier in Pune to show the kVA, datasheet power factor, calculated kW, recharge load and growth margin separately. Compare quotes only after those figures match.
Read 1x1, 3x1 and 3x3 before planning the supply
Read the notation as input phases × output phases: 1x1 means single-phase input and single-phase output; 3x1 means three-phase input and single-phase output; 3x3 means three-phase input and three-phase output. A 3x1 or 3x3 installation therefore needs a three-phase building supply, while 1x1 needs single-phase supply.
| Option | Input | Output | Check before selection |
|---|---|---|---|
| 1x1 | Single-phase | Single-phase | Suitable for single-phase distribution boards and loads |
| 3x1 | Three-phase | Single-phase | Confirm the three-phase feeder and single-phase output board |
| 3x3 | Three-phase | Three-phase | Confirm phase-balanced distribution and three-phase loads |
Do not infer the wiring from kVA alone. A 6 or 10 kVA ITA2 unit can have input options that differ from smaller plug-in models. Before ordering, ask ups systems dealers in pune to record:
- Incoming voltage, frequency, phase sequence, neutral-to-earth voltage and earthing arrangement.
- Output circuits, sockets or a dedicated distribution board, including how loads will be balanced.
- Static and maintenance bypass phase configuration, bypass source, neutral switching and upstream breakers.
- Cable sizes and routes, available short-circuit protection, generator compatibility and service isolation space.
A paper quotation can leave you with a bypass that cannot be safely connected, nuisance transfers, or insufficient building capacity. Require a site survey before comparing prices.
Plan runtime and installation as separate design decisions
Specify autonomy in minutes at a stated load, not as “full backup.” Use the exact ITA2 model’s runtime curve at your measured watts, because battery voltage, ampere-hour capacity, inverter efficiency and battery age all change the result. Longer runtime normally needs matched external battery cabinets, not a larger UPS kVA rating.
Choose the standard cabinet when the required runtime fits its published curve and the UPS charger supports that configuration. Choose an extended cabinet when the curve shows insufficient minutes, then require the quotation to state battery quantity, chemistry, design life, recharge time, DC protection and cabinet dimensions.
Treat ageing and temperature as design inputs: sustained temperatures above the 20–25 °C reference range accelerate VRLA degradation, so survey the actual battery-room or rack temperature and ventilation rather than promising a fixed five-year life.
A site survey must record:
- Incoming voltage, frequency, load profile and neutral-to-earth voltage
- Breaker ratings, available short-circuit protection, cable sizes and cable routes
- Earthing arrangement and the connection point for protective earth
- Ventilation, ambient temperature, floor loading, cabinet clearance and battery space
- Bypass-panel location, maintenance-bypass access and safe isolation space
- Generator voltage, frequency, waveform, sizing, load-step response and UPS recharge compatibility
Give these records to online UPS dealers in Pune before comparing prices. A paper-only recommendation can cause nuisance bypass transfers, overheating, inaccessible maintenance, or an installation that cannot be safely commissioned.
Test a Pune dealer’s quotation, service plan and handover documents
Require an itemised quote, a measurable service commitment and a complete handover pack before choosing between nearby ITA2 sizes. A low UPS price proves little if batteries, commissioning or emergency support appear later as extras.
1. Demand separate prices for the UPS, batteries, delivery, installation, commissioning, taxes, annual maintenance, battery replacement and emergency call-outs. State battery quantity, chemistry, design life, recharge time, DC fuse, cabinet size and charger compatibility.
2. Require the site survey to record voltage, frequency, neutral-to-earth voltage, earthing arrangement, short-circuit protection, cable routes, ambient temperature and load profile. The installation scope must name breakers, cables, bypass wiring and disposal of used batteries.
3. Get written response times, Pune engineer coverage, escalation for bypass or inverter-module failure, trained field-engineer names and access to calibrated test equipment. Ask whether replacement fans, control boards and other critical parts are stocked locally.
4. Make handover conditional on commissioning results at a documented load, alarm and bypass tests, measured earthing, autonomy records and final single-line diagrams. Include breaker and cable schedules, battery-fuse details, firmware and alarm settings.
Whether you compare single phase ups dealers in pune, ups systems dealers in pune, online ups dealers in pune or a single phase ups manufacturer and supplier in pune, apply the same evidence test. A quotation from Originate Power Solutions deserves scrutiny against these documents, not against its headline kVA price.
Related products
 | Single Phase UPS Vertiv Liebert ITA 2 Series 10 kVA (1x1/3x1) Online UPS ₹164650 In today's dynamic world, it is not enough for enterprises to have basic power protection. View product → |
 | Single Phase UPS Vertiv Liebert ITA 2 Series 6 kVA (1x1) Online UPS ₹98370 In today's dynamic world, it is not enough for enterprises to have basic power protection. View product → |
Frequently asked questions
How do you choose between 6 kVA, 10 kVA and 20 kVA ITA2 UPS sizes?
Measure the connected and running loads, convert demand to kW, allow for planned growth, and check equipment starting or inrush current before selecting the size.
Why should UPS capacity be calculated in kW instead of only kVA?
kVA describes apparent power, while kW represents usable real power. Multiply the UPS kVA rating by its stated power factor, then compare that result with the measured equipment load.
What do 1x1, 3x1 and 3x3 mean in a UPS quotation?
The first number identifies the input phase arrangement and the second identifies the output arrangement: single-phase input and output, three-phase input with single-phase output, or three-phase input and output.
What should you check in a Pune UPS dealer’s quotation and handover documents?
Check the model and rating, phase arrangement, battery and runtime assumptions, installation scope, warranty and response terms, test results, user manuals, wiring records and commissioning sign-off.
Related product

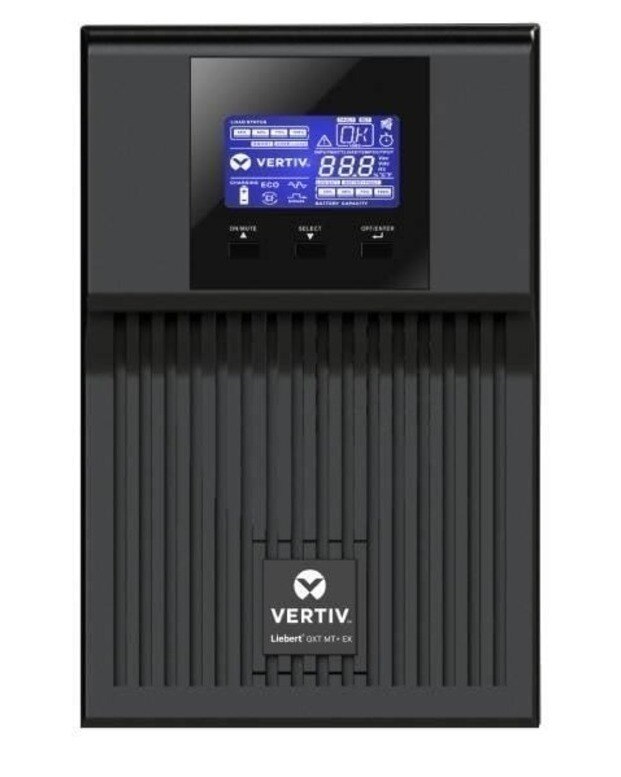

 | Single Phase UPS Vertiv Liebert GXT MT+ CX 2 kVA LB (Long Run Model) Online UPS ₹35600 Vertiv Liebert GXT MT+ Series system is true double conversion Online UPS systems designed to provide with a capacity of 2 kVA. View product → |
