Recovering or replacing a 1–3 kVA UPS requires more than matching the old kVA label. You need to calculate the real watt load, confirm battery autonomy, check site conditions and obtain a distributor quote that defines equipment, installation, warranty and acceptance testing.
Key takeaways
- Treat 0.9 kW, 1.8 kW and 2.7 kW as approximate output limits.
- Compare VA, watts, power factor, bypass, input and output protection.
- Calculate runtime from battery voltage, amp-hours, load and conversion losses.
- Demand a site survey, battery schedule, test record and warranty terms.
How much load can a 1 kVA, 2 kVA or 3 kVA ITA2 support?
At a 0.9 output power factor, a 1 kVA ITA2 supports about 0.9 kW, a 2 kVA unit about 1.8 kW, and a 3 kVA unit about 2.7 kW. Size the UPS against both apparent power in VA and real power in watts; whichever limit you reach first controls the selection.
| ITA2 rating | Approximate real-power limit at 0.9 power factor | Practical implication |
|---|---|---|
| 1 kVA | 0.9 kW | Small single-phase rack or workstation cluster |
| 2 kVA | 1.8 kW | Medium rack or several protected systems |
| 3 kVA | 2.7 kW | Larger rack, instruments or security load |
Measure demand with a true-RMS power meter instead of adding nameplate ratings. Include network switches, servers, storage, monitors, routers, CCTV recorders, access-control panels, laboratory instruments and workstation power supplies.
- Record both watts and VA while the equipment is operating normally.
- Check startup current from monitors, storage arrays, pumps and instruments. A load below the watt limit can still overload the UPS at startup.
- Add capacity for equipment you will install during the UPS service life, but do not use spare capacity to hide an unknown load.
- Treat a 620 W Pune rack as a 1 kVA candidate only after checking VA demand, startup behaviour and headroom.
- A measured 1,650 W rack needs the 2 kVA class or controlled load reduction.
- A 2,450 W load needs the 3 kVA class at 0.9 power factor; do not assume the full 3 kW is available.
This calculation is the foundation for double conversion online ups distributor in pune ita2 kva applications decisions.
What protection and electrical specifications should you compare?
An online double-conversion UPS converts incoming AC to DC through a rectifier, holds the battery on that DC bus during an outage, and converts DC back to regulated AC through an inverter.
A standby UPS starts its inverter only after an outage; a line-interactive UPS normally passes utility power through an AVR and switches during disturbances.
| Protection type | Normal power path | Suitable use |
|---|---|---|
| Standby | Utility, then inverter after failure | Basic desktops with tolerant loads |
| Line-interactive | Utility through AVR, then inverter during disturbance | Desktop clusters or small network cabinets needing short transfer time and limited runtime |
| Online double-conversion | Rectifier, DC bus, inverter continuously | Laboratory instruments, storage, telecom equipment, or unstable utility and generator sites |
Compare the exact ITA2 model code and datasheet, not only the kVA label. Check input and output voltage ranges, frequency range, input power factor, output power factor, efficiency, overload duration and static-bypass transfer behaviour. An inverter overload, internal fault or out-of-range inverter condition can still transfer the load to bypass.
Transformer-free construction reduces weight, cabinet volume and conversion losses, but it does not create galvanic isolation. Specify an isolation transformer for separated neutrals, noise attenuation or a defined isolation barrier. The ITA2 range serves single-phase loads, not a three-phase facility UPS.
A double conversion online ups distributor in pune and single phase online ups traders in pune should provide these figures with the quote. Also check generator frequency stability, impedance and the UPS input-frequency window before assuming compatibility.
How should you calculate runtime and specify replacement batteries?
A 1 kVA, 2 kVA or 3 kVA label cannot tell you runtime. Runtime depends on load in watts, battery quantity and condition, discharge temperature, inverter efficiency, state of charge, and whether the UPS uses internal or external batteries.
| Configuration | What to confirm | Comparison point |
|---|---|---|
| Internal batteries | Battery quantity, individual rating and cabinet arrangement | Compact, but limited autonomy |
| External battery cabinet | Cabinet size, battery strings and recharge time | Longer runtime without simply increasing kVA |
| Aged battery bank | Test results and installation temperature | New-battery runtime no longer applies |
Ask ups systems dealers in pune for a runtime chart naming the exact Vertiv Liebert ITA2 model, battery configuration, load in watts, end-of-discharge voltage and test conditions. Require rows for your measured load and target, such as 600 W for 15 minutes or 1,500 W for 10 minutes. “Full load” alone is not comparable.
Specify these items in the battery quote:
- Battery chemistry, quantity and individual battery rating
- Internal arrangement or external battery cabinet option
- Replacement interval or condition-testing method
- Interconnects, torque requirements and disposal route
- Recharge time and post-replacement controlled-load test
Valve-regulated lead-acid batteries lose capacity with age and age faster at elevated temperature. Check Pune sites for heat, dust, ventilation and monsoon humidity.
Recovery depends on confirmed battery condition and an autonomy calculation, not the UPS nameplate. If internal batteries cannot meet the required minutes, compare an external arrangement with controlled shutdown before selecting a larger kVA rating.
What should a Pune distributor include in a recovery or replacement quote?
A recovery quote is comparable only when it identifies the exact Vertiv Liebert ITA2 model code, input and output voltage, output power factor, battery configuration, static-bypass arrangement and warranty terms. The double conversion online ups distributor in pune or ups systems dealers in pune label describes a buying route, not authorised status or technical support.
- State whether the price includes batteries, battery cabinet or rack, rack rails, input and output cabling, freight, GST, software, installation, commissioning, maintenance bypass and old-battery disposal.
- Verify serial-number traceability, manufacturer warranty registration, invoice and tax documentation, battery warranty, replacement battery and fan availability, service response time and who owns commissioning.
- Require written acceptance testing for utility-to-battery operation, battery-to-utility recharge, bypass transfer, alarm and overload reporting, communications shutdown, measured output voltage and controlled-load or load-bank runtime.
Record the old unit’s fault code, serial number, battery age, connected watts and outage history before requesting a replacement. Ask for a comparison separating the UPS, battery autonomy, installation and ongoing maintenance; a low price may exclude the battery package needed for your recovery objective.
Include battery chemistry, quantity, individual ratings, replacement method and disposal route. Evaluate Originate Power Solutions against these deliverables, not a catalogue label or lowest chassis price.
Related product

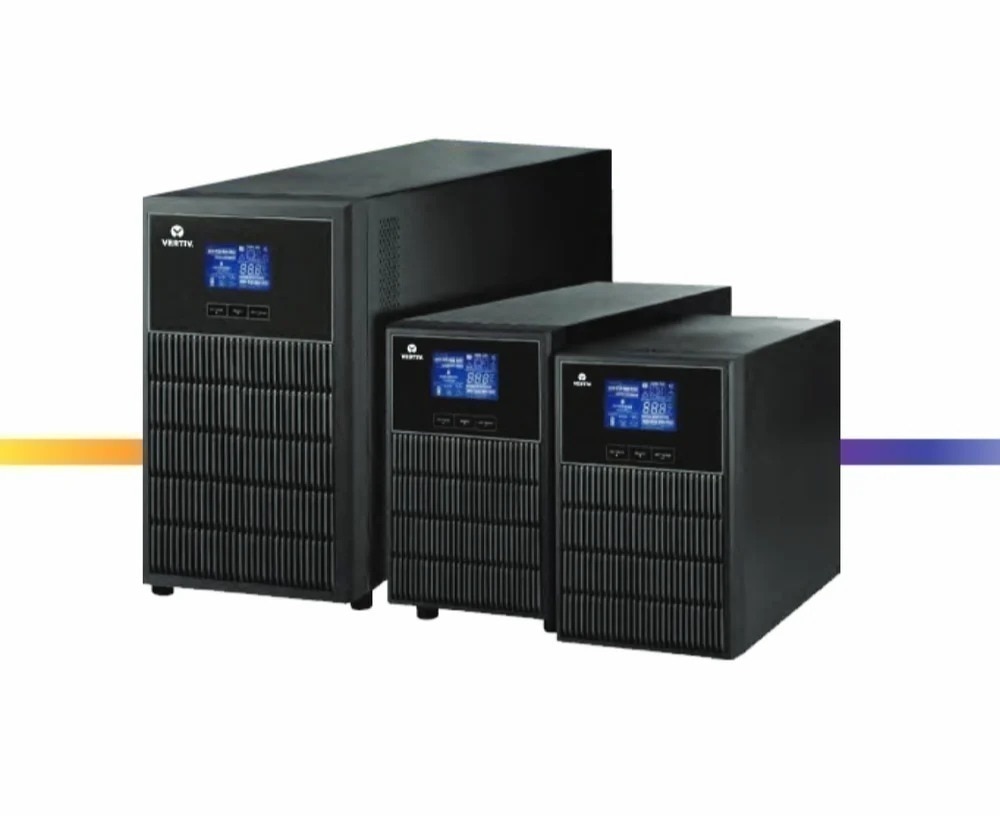

 | Single Phase UPS Vertiv Liebert ITA2 UPS 1-3 kVA ₹35144 The Vertiv Liebert ITA2 (1-3 kVA) series is a full-featured transformer-free UPS designed to offer compact, efficient, and reliable power to modern... View product → |
How do you validate the installation for racks, offices and instruments?
Validate the installation by controlling three variables before connecting equipment: location, electrical supply and load. Keep the UPS ventilated with service clearance, away from heat sources, dusty floor areas and unventilated cabinets. Confirm battery temperature remains within the manufacturer’s stated range.
Check these installation points before energising the load:
| Check | What to verify | Failure risk |
|---|---|---|
| Earthing and supply | Input earthing, neutral arrangement, dedicated protection and correctly sized cables | Shock risk, nuisance trips or UPS damage |
| Generator supply | Generator impedance, frequency stability, rectifier input-current distortion and the UPS input-frequency window | Repeated transfers between generator, inverter and battery |
| Distribution | Output breaker, socket polarity and the complete path to each rack, office circuit or instrument | A powered UPS with an incorrectly wired load |
Test real equipment, not an empty chassis. Connect office workstations, network switches, storage, CCTV, access control and laboratory instruments, then record inrush and power-factor behaviour. A 1–3 kVA rating alone does not prove generator compatibility or usable runtime.
Confirm the supplied communications interface, supported shutdown protocol, network-management option and alarm contacts. Check that they work with the site’s BMS or monitoring platform; packages compared by single phase online UPS traders in Pune are not automatically identical.
Record normal input and output voltage, load in watts and VA, battery voltage, alarms, bypass status and measured runtime. Run utility-to-battery, recharge, bypass, overload, alarm, communications-shutdown and controlled-load runtime tests. Schedule battery inspection and capacity testing from the manufacturer’s guidance, then retest after replacement.
Frequently asked questions
How much load can a 1 kVA, 2 kVA or 3 kVA ITA2 support?
At a 0.9 output power factor, a 1 kVA unit supports about 0.9 kW, a 2 kVA unit about 1.8 kW, and a 3 kVA unit about 2.7 kW. Check both VA and watts because the first limit reached determines the required size.
What protection and electrical specifications should you compare?
Compare double-conversion online operation, output power factor, input and output voltage, frequency range, transfer performance, bypass arrangement, overload capacity, short-circuit protection, battery charging and communication interfaces. Confirm each value against the exact ITA2 model and configuration.
How should you calculate runtime and specify replacement batteries?
Start with the battery string voltage, amp-hour rating and connected load. Allow for inverter efficiency, battery ageing and discharge-rate effects, then verify the result with a timed discharge test. Specify battery chemistry, quantity, voltage, amp-hour rating, terminal type, dimensions, manufacturing date and warranty.
What should a Pune distributor include in a recovery or replacement quote?
Request the exact UPS model, kVA rating, battery schedule, labour, transport, GST, commissioning, disposal of old batteries, warranty, response time and exclusions. Ask for a site survey, single-line diagram, test procedure and itemised pricing from a double conversion online UPS distributor in Pune.
How do you validate installation for racks, offices and instruments?
Record input and output voltage, frequency, load in VA and watts, battery voltage, alarm status, bypass status and runtime. Test mains failure, restoration, overload alarms, shutdown sequencing, earthing, ventilation and rack or instrument clearances before handover.
