The two 6 kVA options differ in more than transformer construction: one includes an isolation transformer, while the other includes a maintenance bypass switch. By comparing capacity, phase arrangement, bypass design, batteries, installation demands and total ownership terms, you can test whether a quoted GXT MTX unit fits your load and site.
Key takeaways
- Choose GXT MTX+ for isolation transformation without a built-in MBS.
- Choose GXT MT+ when its built-in MBS fits your service strategy.
- Size the UPS against measured load, starting current and future capacity.
- Make every quote state batteries, bypass, wiring, commissioning and warranty scope.
What separates the GXT MTX+ and GXT MT+ 6 kVA options?
The decisive difference is the power path: the GXT MTX+ uses an isolation transformer and has no built-in MBS, while the transformer-free GXT MT+ includes an MBS. An MBS, or maintenance bypass switch, transfers the load around the UPS so technicians can isolate and service the UPS without shutting down the connected equipment.
| Feature | GXT MTX+ | GXT MT+ |
|---|---|---|
| Transformer | Isolation transformer provides galvanic separation and changes neutral and fault-current behaviour; it adds weight, heat and cabinet space. | No isolation transformer, so the cabinet is generally lighter, cooler and more compact. |
| Maintenance bypass | No integral MBS; installation must provide a correctly rated external bypass arrangement. | Integral MBS simplifies planned servicing, subject to correct bypass wiring and operating procedures. |
| Installation impact | Allow for transformer ventilation, clearance, floor loading and neutral-earthing review. | Allow for bypass isolation, switching coordination and access to the MBS. |
| Best fit | Sites needing isolation or a transformer-based distribution arrangement. | Sites prioritising compact installation and convenient UPS maintenance. |
Do not compare either option from “6 kVA” alone. At a 0.9 output power factor, that rating represents about 5.4 kW, so the quotation must state both figures and the exact model code.
For an ups systems dealers in Pune gxt mtx 6 kva option comparison, request confirmation of rack or tower hardware, hardwired or receptacle output, battery access, communication-card provision, and whether parallel or redundancy capability is included. That is the useful distinction in a GXT MTX 6 kVA option comparison, not merely the product name.
How does the isolation transformer change installation and performance?
An isolation transformer creates galvanic isolation: input and output conductors are electrically separated, so upstream disturbances do not pass directly through the power path. It does not automatically create a safe neutral arrangement.
Confirm the UPS output neutral-to-earth bond, bypass neutral continuity and earthing method with the one-line diagram; an incorrect bond can trip protection or place voltage on exposed metal.
| Installation factor | Transformer-based option | Pune implication |
|---|---|---|
| Fault current | Transformer impedance limits prospective short-circuit current | Recheck breaker ratings, discrimination and bypass fault-clearing |
| Heat and efficiency | Core and winding losses add heat and reduce efficiency | Provide the manufacturer’s clearance and room ventilation; a hot electrical room reduces operating margin |
| Size and weight | The transformer adds mass and cabinet volume | Check floor loading, doorway width, lifting access and service clearance |
| Neutral control | A separately derived output allows defined neutral management | Do not connect it as though it were a transformer-free UPS |
The transformer also changes transient behaviour. Its impedance can soften motor or transformer inrush, but it can limit available fault current and alter voltage dip during abrupt loading. Printers, air-conditioning controls and rectifier-fed servers still need a real load study, including crest factor and short-duration peaks.
A “single phase ups traders in pune gxt mtx comparison” is useful only when the quote states input and output phase arrangement, cabinet dimensions, ventilation clearance and measured load assumptions. That is the practical gxt mtx comparison—not simply a 6 kVA nameplate.
How should you size a 6 kVA GXT MTX for the actual load?
A 6 kVA nameplate does not mean 6 kW. At a 0.9 output power factor, this class of UPS supplies about 5.4 kW of real power, so check both totals. Add each device’s watts and apparent power, then compare the combined figures with the UPS’s published kW and kVA limits.
Measure the real load during its busiest operating period, not only from equipment nameplates. A server rack may fit within the kVA limit yet stress the inverter through a high crest factor: short, high current peaks from switched-mode power supplies. Confirm the UPS crest-factor rating and any required derating.
Check transient demand before approving the unit. Motors, transformers, laser printers and air-conditioning controls can draw several times their running current at startup; that surge can trigger bypass or overload even when the steady load appears safe.
- Include expansion headroom. Price the expected future load and keep normal operation below the rating; a design with roughly 20% spare capacity gives growth and avoids running continuously at the limit.
- Confirm the one-line diagram. A 6 kVA GXT MTX is normally single-phase input and single-phase output, not a three-phase UPS. Verify the bypass supply, output board and load connection before ordering.
- Ask ups systems dealers in Pune comparing GXT MTX options for measured kW, kVA, power factor, crest factor, inrush current and phase arrangement in writing.
A 6 kVA unit is adequate only when steady demand, peak current, future growth and single-phase distribution all fit its documented limits.
What battery, bypass and electrical details must the quotation confirm?
A 6 kVA label does not identify the input arrangement, battery string or bypass hardware. For a quotation from double conversion UPS traders in Pune, require the complete Liebert GXT MTX model code, including suffixes, rack or tower hardware, receptacle or hardwired output, and communication-card provision.
| Quotation item | GXT MTX+ | GXT MT+ |
|---|---|---|
| Model and arrangement | Confirm exact code, single-phase input/output, voltage, frequency and terminals | Confirm exact code, single-phase input/output, voltage, frequency and terminals |
| Transformer and MBS | State isolation-transformer rating, heat output and whether no maintenance bypass switch is supplied | State transformer-free design and whether the MBS is internal or external |
| Battery | State internal or external battery, DC voltage, string count, battery type and charger setting | State the same, including compatible external cabinets |
| Autonomy and recharge | Give runtime at your measured kW load, recharge time and charger current | Give runtime at your measured kW load, recharge time and charger current |
| Static bypass | State transfer limits, bypass voltage/frequency window and overload behaviour | State the same; static bypass is not a maintenance bypass |
| Generator input | Confirm acceptable frequency range, slew or frequency behavior, input power factor and input-current THD | Confirm the same against your generator |
Also obtain the external-cabinet dimensions, weight, breaker or fuse rating, cable entry, battery replacement access and ventilation clearance. Ask whether the quote includes a properly rated, interlocked maintenance-bypass arrangement; servicing requires isolation beyond an electronic static-bypass transfer.
UPS systems dealers in Pune offering GXT MTX options should provide the one-line diagram and confirm whether a three-phase board feeds a single-phase UPS.
How can Pune buyers compare dealer quotes beyond the UPS chassis?
A lower chassis price does not mean a lower project cost. Ask every dealer to separate equipment, installation, commissioning, monitoring, maintenance, batteries and site modifications rather than combining them under “UPS supply.”
| Item | Compare in each quote | Cost or risk if omitted |
|---|---|---|
| Installation | Tower or rack mounting, hardwired or receptacle output, cable length, earthing, clearances and floor loading | Extra electrical work or unsafe ventilation |
| Commissioning | Startup tests, load-bank testing, alarm checks, battery test and signed handover report | Faults appear after the installer leaves |
| Monitoring | Communication card, software, network connection, firmware and alarm notification | No remote visibility; “monitoring ready” may mean hardware is excluded |
| Maintenance | Visit frequency, response time in Pune, labour, spares and emergency attendance | A cheap contract can leave downtime uncovered |
| Warranty | UPS, inverter, batteries, fans, card and onsite labour covered separately | Battery failures may fall outside the headline warranty |
| Battery replacement | Battery make, quantity, rating, labour, disposal and access procedure | Replacement cost arrives as a surprise |
| Site conditions | Ambient temperature, dust, humidity, generator behaviour, feeder quality and available bypass space | Derating, nuisance transfers or delayed installation |
For ups systems dealers in pune gxt mtx options, require both 6 kVA and 5.4 kW figures, plus autonomy at your measured load. Ask whether parallel operation, redundancy and the external maintenance bypass are included or merely optional.
Double conversion ups traders in pune gxt mtx should document input range, frequency tolerance, generator compatibility, input power factor, distortion and charger settings. Originate Power Solutions can use the same checklist to produce a comparable Pune quote, not just a chassis price.
Add GST, transport, commissioning, annual maintenance and battery replacement to calculate five-year total cost.
Related products

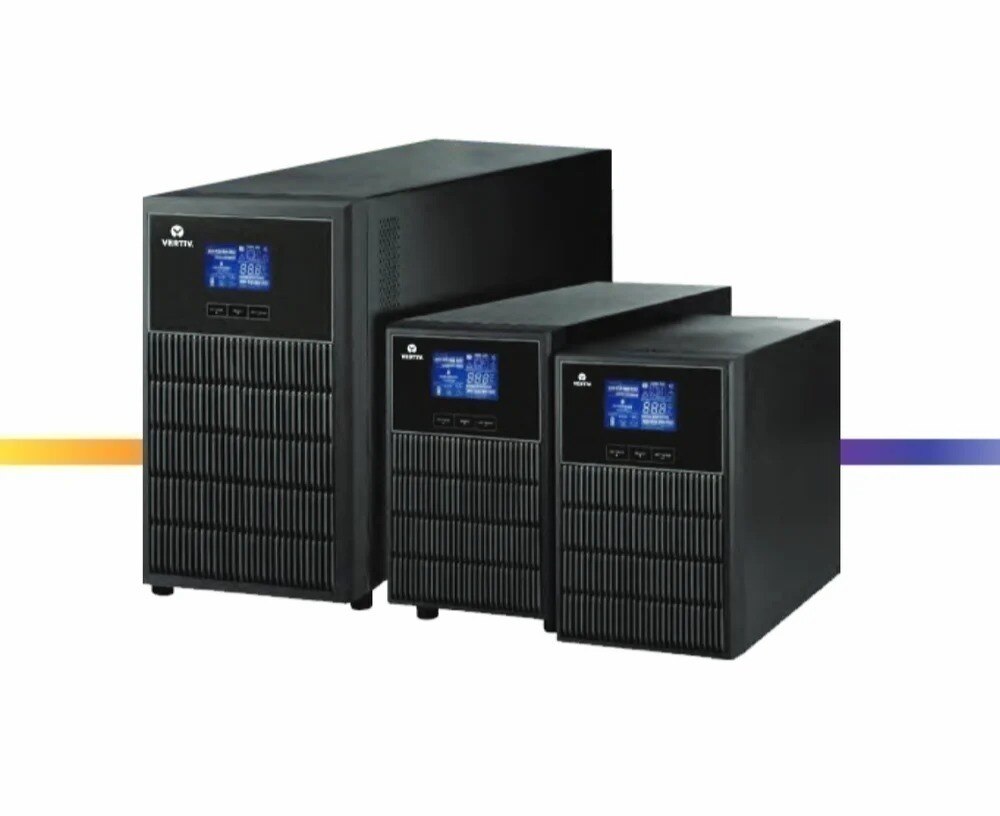

 | Single Phase UPS Vertiv Liebert GXT MTX+ 6 kVA (1x1) Online UPS with Inbuilt Isolation Transformer without MBS ₹93985 Liebert GXT MTX+ 6 kVA is a full featured Transformer based UPS designed to offer compact efficient and reliable power thirsty modern electronic... View product → |
 | Single Phase UPS Vertiv Liebert GXT-MT+ 6 kVA (1x1) Online UPS with Inbuilt MBS ₹74500 Vertiv Liebert GXT MT+ 6 kVA is a full featured transformer free UPS designed to offer compact efficient and reliable power to power thirsty modern... View product → |
Frequently asked questions
What separates the GXT MTX+ and GXT MT+ 6 kVA options?
The GXT MTX+ uses an isolation transformer and has no built-in MBS. The transformer-free GXT MT+ includes an MBS for transferring the load around the UPS during maintenance.
How does the isolation transformer affect installation?
It adds a transformer to the power path, so the quotation must account for its physical space, weight, heat, input and output connections, earthing and installation requirements.
How should you size a 6 kVA GXT MTX for the actual load?
List every connected load, measure its running demand, check starting or inrush current, and leave capacity for planned growth instead of treating the 6 kVA rating as available load.
What battery and bypass details should a Pune UPS quotation confirm?
Ask the dealer to identify battery quantity and rating, expected runtime, battery cabinet or rack, recharge provisions, bypass arrangement, input and output wiring, protection, commissioning and warranty scope.
How can buyers compare Pune dealer quotes beyond the UPS chassis?
Compare the complete power path and delivered scope: model variant, transformer, MBS, batteries, runtime, electrical work, installation, testing, service response and exclusions.
