Vertiv Liebert ita2 KVA Models Compared by Industrial UPS Distributors in Pune

An ITA2 quotation is incomplete if it states only “10 kVA” or “20 kVA”: input phase, output phase, usable kW, battery arrangement and bypass design change the installation decision. By the end, you will be able to compare the 1, 3, 6, 10, 20, 30 and 40 kVA options, identify missing technical data, size a system from measured load and assess the full delivered cost of an installation.

Key takeaways

Confirm whether the ITA2 quote specifies 1x1, 3x1 or 3x3 phase configuration.
Compare usable kW output, not kVA alone, when sizing the UPS.
Specify battery runtime, load profile, temperature and installation conditions.
Require testing, wiring details and commissioning scope in the Pune quotation.

Read the ITA2 rating as a phase configuration, not just a kVA number

A quote for “ITA2 10 kVA” is incomplete until it states input and output phase. The notation 1x1 means single-phase input and single-phase output; 3x1 means three-phase input and single-phase output; 3x3 means three-phase input and three-phase output.

Configuration	What it means	Suitable ITA2 arrangement
1x1	One phase in, one phase out	Small single-phase panels, instruments and controls; commonly lower ratings such as 1–6 kVA
3x1	Three phases in, one phase out	A facility with three-phase supply feeding a concentrated single-phase load; often considered at 5–20 kVA
3x3	Three phases in, three phases out	Balanced three-phase panels, plant automation and larger distributed loads; normally relevant to 10–40 kVA, including 30 and 40 kVA

Treat those rating bands as selection points, not guaranteed configurations. A 10 kVA or 20 kVA ITA2 may be available as 3x1 or 3x3, while enclosure, battery arrangement and cabling change with the order code. Confirm the manufacturer datasheet before comparing offers.

For an industrial online ups distributor in pune ita2 kVA model comparison, match the phase arrangement to the panel you will protect. A 3x3 UPS is unsuitable for a single-phase-only distribution board without the correct downstream design; a 1x1 unit cannot accept a three-phase load.

An industrial online ups distributor in pune ita2 models comparison must therefore show phase configuration beside kVA, not bury it in fine print. The industrial online ups distributor in pune ita2 models quote should also identify bypass and battery arrangement separately.

Compare every model on usable output and electrical performance

Compare usable kW, not just the front-panel kVA. A 20 kVA ITA2 rated near 0.9 output power factor delivers about 18 kW; use the proposed model’s datasheet value, not a kVA-to-kW assumption. For a three-phase UPS distributor in Pune, an ITA2 kVA comparison must also identify phase wiring, voltage, frequency and bypass capacity.

Figure	Compare	Why it affects selection
Usable output	Rated kW and output power factor	Prevents a kVA-sized unit from overloading at real power demand
Input/output phase	1x1, 3x1 or 3x3	Confirms compatibility with the feeder and load panel
Voltage and frequency	Nominal voltage, accepted window and frequency range	A generic 380/400/415 V claim may not match your site
Overload and crest factor	Duration, percentage and nonlinear-load capability	Protects against drives, rectifiers and step-load trips
Efficiency	Online efficiency at 25%, 50% and 100% load	Oversizing can increase losses at light load
Parallel capacity	Maximum units, controller, bypass and N+1 usable kW	Redundancy removes one unit’s capacity from the calculation

Size the UPS from measured operating data, then test the worst event:

Record true kW, kVA and power factor with a power analyser during normal and peak production.
Add motor, transformer and DC-bus inrush; a steady-state reading will not reveal startup overload.
Add documented future load, then keep headroom rather than selecting the next label by habit.
For N+1, calculate capacity after removing one paralleled unit and confirm the 30 or 40 kVA order code supports that arrangement.
Recheck the result against bypass rating, harmonic current and the actual industrial distribution panel.

Match batteries, runtime and site conditions to the load

Battery configuration and site conditions can outweigh the nominal kVA when choosing an ITA2. A smaller single-phase unit suits a control panel with modest, measured load; a 30 or 40 kVA three-phase system suits a distributed loadboard and three-phase supply.

An industrial online UPS distributor in Pune comparing ITA2 models must quote the battery arrangement, not only the rating.

Runtime depends on battery-block count, ampere-hour capacity, load percentage, end-of-discharge voltage and temperature. Confirm whether the price includes internal batteries, an external cabinet or a separate DC rack. A longer autonomy requirement increases battery quantity, floor space, charging demand and replacement cost.

Check these site conditions before selecting the enclosure:

Measure cabinet temperature, dust, humidity and ventilation; compare them with the model’s datasheet limits.
Confirm floor loading, service clearances, cable-entry direction and the route to the battery cabinet.
Verify input protection, maintenance bypass, earthing and neutral arrangements with the single-line diagram.
Record motor or transformer inrush separately; a lightly loaded UPS can still overload during startup.

Choice	Battery and installation implication	Suitable condition
Smaller single-phase ITA2	Compact battery set; simpler distribution; limited autonomy and load growth	One control panel or small critical load
30 kVA three-phase	Larger battery cabinet or rack; dedicated feeder and bypass planning	Balanced three-phase loads with centralised protection
40 kVA three-phase	More floor space, heat rejection and cable capacity	Higher measured load, startup margin or planned expansion

Do not assume identical kVA models deliver identical runtime: order codes and battery configurations change the result.

Choose between ITA2, modular and separate-load UPS strategies

Choose ITA2 when you need online double-conversion protection for a defined critical load, but do not use it as a default for every panel.

A 5–20 kVA ITA2 can be excessive for a few computers on stable utility power, while a 30 or 40 kVA model can be unsuitable for motor starting without checking inrush and bypass capacity.

Strategy	Prefer it when	ITA2 is unsuitable or excessive when
Modular UPS	Load will grow, N+1 redundancy matters, or modules must be replaced without taking down the bus	The load is stable and a single fixed UPS costs less and meets the required autonomy
Conventional industrial double-conversion UPS	The site needs rugged construction, high overload tolerance, transformer isolation, or easier service access	Its larger footprint and higher installed cost add no value to a clean, predictable load
Line-interactive UPS	Controls, networking or office electronics need economical voltage correction on reliable utility power	Voltage events, frequency variation, transfer time or generator operation threaten the load
Separate UPS units	PLCs, instrumentation and communications need clean backup, while motors remain on a separate feeder	One protected bus, common shutdown and coordinated bypass are required
ITA2	Critical electronic loads need continuous inverter output and a compact fixed-capacity system	Expansion, modular redundancy or large motor-starting duty dominates the specification

Keep motors and large transformers off the ITA2 output unless the manufacturer confirms starting performance. A separate motor-rated arrangement often prevents nuisance overloads.

For a three phase UPS distributor in Pune, an ITA2 kVA comparison must state input/output phase configuration, usable kW, battery scope and bypass hardware. Treat a quote saying only “10 kVA” as incomplete.

Turn a Pune UPS quotation into a deliverable, testable system

A quotation becomes a deliverable system only when it states what happens before, during and after installation. “UPS systems traders in Pune ITA2 kVA options” is a useful search, not a buying specification: compare the included engineering scope, not only the equipment price.

For an industrial online UPS distributor in Pune ITA2 kVA model comparison, require the proposed input/output phase arrangement, measured load in kW, inrush assumptions, autonomy target and ambient-temperature derating. A quote that says only “ITA2 10 kVA” is incomplete.

Survey: verify the single-line diagram, cable routes, earthing, panel capacity, bypass source, ventilation, battery location and floor loading; record the measured load and phase balance.
Procurement: list the UPS module, battery blocks, cabinet or rack, DC protection, input and output breakers, static bypass, maintenance bypass, cabling and any communications card as separate line items.
Installation: state who supplies lifting, termination, gland kits, labels, fire-safe battery work and disposal of old batteries.
Commissioning: include phase-sequence checks, alarm and bypass tests, battery-charge verification, controlled step-load testing and a signed commissioning report.
Support: specify response time in Pune, preventive-maintenance visits, remote monitoring, spare-parts availability and replacement-battery terms.
Acceptance: require autonomy or load-bank results, bypass-transfer results, alarm logs, as-built drawings, manuals, warranty dates and operator training.

Originate Power Solutions should be evaluated against this same checklist, so a lower quotation cannot hide excluded battery work or commissioning.

Related products

Single Phase UPS

Vertiv Liebert ITA 2 Series 10 kVA (1x1/3x1) Online UPS

₹164650

In today's dynamic world, it is not enough for enterprises to have basic power protection.

View product →

Three Phase UPS

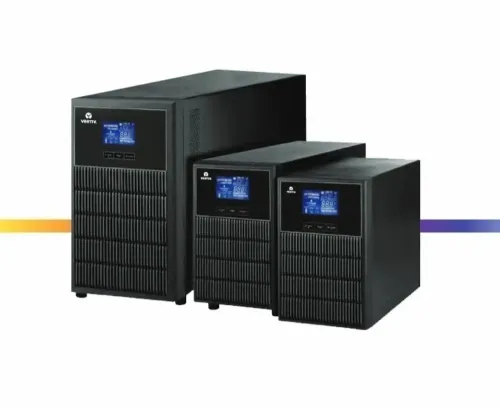

Vertiv Liebert ITA2 30 kVA Online UPS

The Vertiv Liebert ITA2 UPS offers economical, efficient, and reliable three-phase power for critical loads under 30 kVA.

View product →

Frequently asked questions

What do 1x1, 3x1 and 3x3 mean on an ITA2 UPS quote?
They describe the input and output phase arrangement: 1x1 is single-phase input and output, 3x1 is three-phase input with single-phase output, and 3x3 is three-phase input and output.
How should you compare ITA2 kVA models?
Compare usable kW output, power factor, input and output phase, electrical performance and the load’s operating profile rather than comparing the kVA number alone.
What battery information belongs in an ITA2 UPS quotation?
The quotation should state the required runtime, connected load, battery configuration and site conditions, including temperature and installation constraints.
When is a modular UPS or separate-load strategy preferable to ITA2?
Choose among ITA2, modular UPS and separate-load arrangements after comparing scalability, redundancy, maintenance access, load distribution and the electrical requirements of each protected load.
What should you require from a Pune UPS quotation?
Request documented phase configuration, ratings, batteries, wiring, installation scope, testing procedures and commissioning deliverables so the supplied system can be checked against the design.
